Product Overview
The Intelligent Fully Automatic Pallet Wrapping Machine with Top Pressure Plate is designed for manufacturers, warehouses, logistics centers, food processors, chemical plants, and building material factories that require stable, secure, and high-efficiency pallet packaging. Equipped with a 1650mm heavy-duty turntable, 2350mm wrapping height, 1500kg maximum load capacity, and 200% pre-stretch film carriage, this machine significantly reduces film consumption while improving packaging consistency.
Its intelligent top pressure system securely holds lightweight or unstable pallet loads during rotation, preventing product shifting and ensuring uniform wrapping. The integrated automatic film cutting system, Siemen PLC control, touchscreen interface, LED intelligent alarm system, and X-Line IoT monitoring simplify operation while minimizing labor requirements. Designed with comprehensive safety protection, including a film carriage anti-fall device and emergency stop system, this pallet wrapper delivers reliable performance for continuous industrial operation.
Why Do You Need an Intelligent Pallet Wrapping Machine?
Many factories still rely on manual wrapping or semi-automatic machines, resulting in several common packaging problems:
Inconsistent wrapping quality between operators
Product movement during wrapping, especially lightweight pallets
Excessive stretch film consumption
Low packaging efficiency during peak production
Labor shortages and rising labor costs
Poor load stability during transportation
Frequent downtime caused by manual film handling
Limited production monitoring and data management
These issues increase transportation damage, packaging costs, and production delays.
The Solution
Our Intelligent Fully Automatic Pallet Wrapping Machine provides a complete automated packaging solution.
Intelligent Top Pressure System
The pneumatic top pressure plate firmly holds unstable or lightweight pallet loads during wrapping, preventing load collapse and improving packaging quality.
Automatic Film Cutting
The machine automatically clamps and cuts the stretch film after wrapping, eliminating manual intervention and increasing production efficiency.
200% Pre-Stretch Film System
The powered pre-stretch carriage extends 1 meter of film into approximately 3 meters before wrapping, reducing film consumption by up to 50% compared with conventional systems.
Siemen Intelligent Control
A Siemen PLC and touchscreen allow operators to easily adjust wrapping cycles, turntable speed, carriage speed, top and bottom wraps, and wrapping programs.
LED Intelligent Alarm
The intelligent diagnostic system provides real-time fault detection and LED status indication, reducing troubleshooting time and maintenance costs.
X-Line IoT Connectivity
Optional IoT connectivity enables production monitoring, equipment diagnostics, and preventive maintenance management.
Comprehensive Safety Protection
Multiple safety systems include:

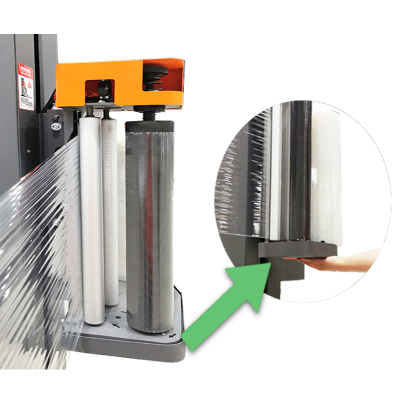

Film carriage anti-fall protection
Emergency stop button
Soft start and stop
Automatic position reset
Safety sensors
Stable inverter-controlled operation
Specifications
| Item |
Specification |
| Model |
X100s-TP |
| Machine Type |
Intelligent Fully Automatic Pallet Wrapping Machine |
| Turntable Diameter |
1650 mm (1500/1800/2000 mm optional) |
| Maximum Load Capacity |
1500 kg |
| Wrapping Height |
2350 mm (1800–3200 mm optional) |
| Top Pressure Height |
500–2200 mm |
| Pressure Force |
30 kg (Adjustable) |
Applications
The machine is suitable for wrapping almost every palletized product requiring transportation protection.
Typical industries include:
Food & Beverage
Bottled Water
Carton Packaging
Building Materials
Ceramic Tiles
SPC Flooring
PVC Flooring
Chemical Products
Fertilizer
Pet Food
Pharmaceutical Products
Textile Products
Electronics
Household Appliances
Logistics & Distribution Centers
Cold Storage Warehouses
It is especially suitable for lightweight pallet loads that require additional stabilization during wrapping.
How It Works
The operator places the pallet onto the turntable using a forklift or pallet truck.
The automatic top pressure plate descends and securely holds the load. Once the wrapping cycle starts, the turntable rotates while the powered film carriage moves vertically to apply stretch film evenly around the pallet.
The intelligent control system automatically performs bottom wraps, body wrapping, reinforcement wraps, and top wraps according to the selected program.
After the wrapping cycle is completed, the machine automatically clamps and cuts the film. The top pressure plate retracts, and the wrapped pallet is ready for immediate transportation.
The entire process is fully automated, requiring minimal operator involvement while maintaining consistent packaging quality.
How To Choose the Right Pallet Wrapping Machine
Selecting the appropriate pallet wrapper depends on your production requirements.
Choose this model if:
Your pallets weigh up to 1500 kg
Your pallet height is within 2350 mm
You package lightweight or unstable loads
You require automatic film cutting
You want to reduce film consumption
You need higher packaging consistency
You operate medium to high-volume production lines
Optional Configurations
1800 mm / 2000 mm turntable
Wrapping height up to 3200 mm
250% pre-stretch carriage
Remote IoT monitoring
Ramp
Weighing scale
Automatic pallet height detection
Different voltage standards
Customized wrapping programs
FAQ
Q1. What products is the top pressure system designed for?
The top pressure plate is ideal for lightweight, tall, unstable, or loosely stacked pallet loads that may shift during wrapping. It ensures stable rotation and improves packaging quality.
Q2. How much stretch film can the machine save?
The standard 200% powered pre-stretch system allows 1 meter of film to stretch to approximately 3 meters, significantly reducing film usage and lowering packaging costs. A 250% pre-stretch option is also available.
Q3. Can the machine be integrated into an automatic packaging line?
Yes. The machine supports conveyor integration, automatic start signals, PLC communication, and optional IoT connectivity, making it suitable for fully automated production lines.
Q4. Which industries commonly use this machine?
It is widely used in logistics, food processing, beverage manufacturing, building materials, SPC flooring, chemicals, electronics, warehousing, and export packaging.
Q5. Can the machine be customized?
Yes. We provide OEM and customized solutions, including different turntable sizes, wrapping heights, voltages, control systems, film carriage options, weighing systems, ramps, and conveyor integration to meet specific production requirements.
